Flying Bear LaserMan 1pcs 5.5W Laser Module Head

Main Features:

1. This laser module suit for almost laser engraving machine.

2. Newest laser module:  the 5.5w can compressed spot 0.08x0.1mm,It can cut 3 mm plywood and 6 mm pine board at one time.

3. Eye Protection Cover:equipped with a protective cover to protect your eyes from the Laser engraving.

4. PWM mode: Laser module adjustment range reaches s0-s1000, and it can be engraved and cut on paper, wood, and metal at will.

5. Higher speed: Engraving speedusually can reach 3000-5000mm/min. (If the engraving quality is not considered, the maximum can reach 10000mm/min).

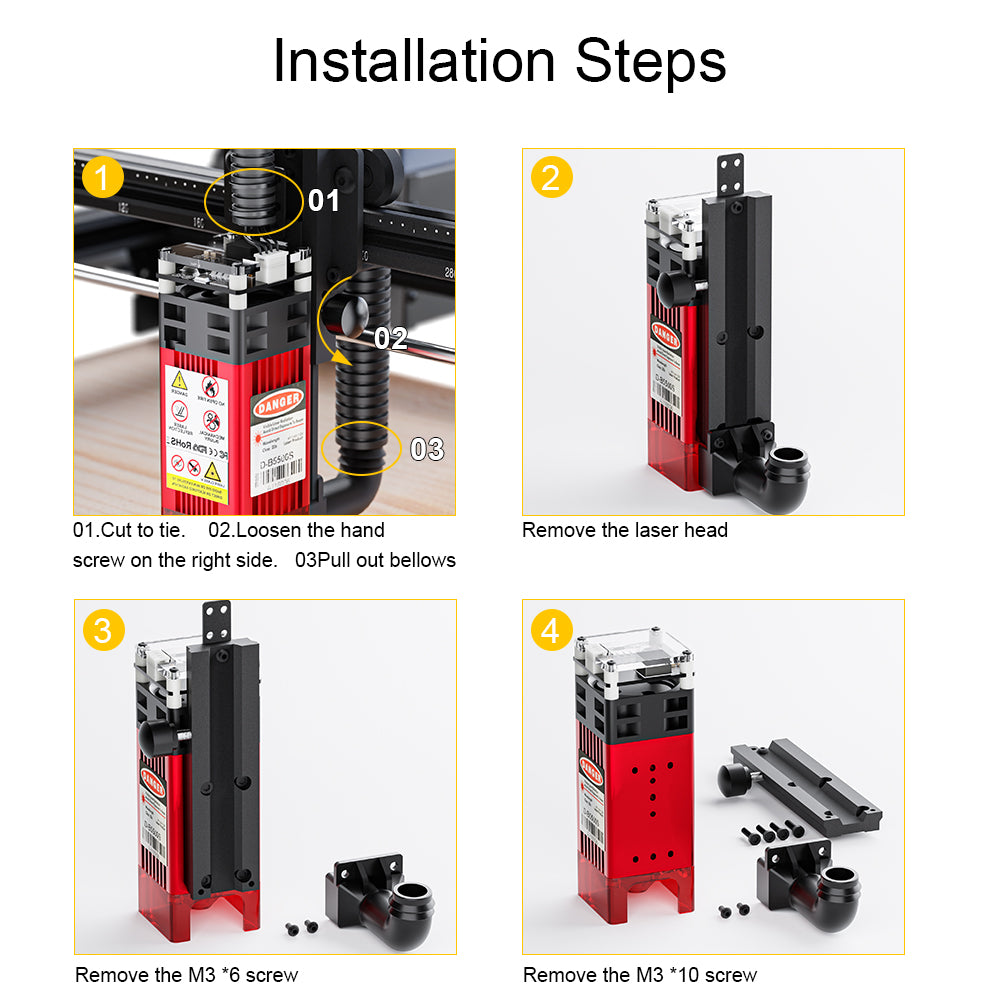

6. Easy installation: come with the screws and wrench, easily assemble on your Laser Engraver Machine.

7. High quality structure: Good looking with a reliable Quality.



Machine Parameters

Product Name:  FLYING BEAR Laser Head

Focal Spot Diameter:0.08*0.1mm

Engraving Accuracy:0.01mm

Electrical Power of Laser Module: 20W

Luminous Power:5~5.5W
Max Engraving Speed:10000mm/min

Engraving Material:wood, plastic, paper, bamboo,leather sponge paper, stainlesssteel, anodized aluminum, etc.

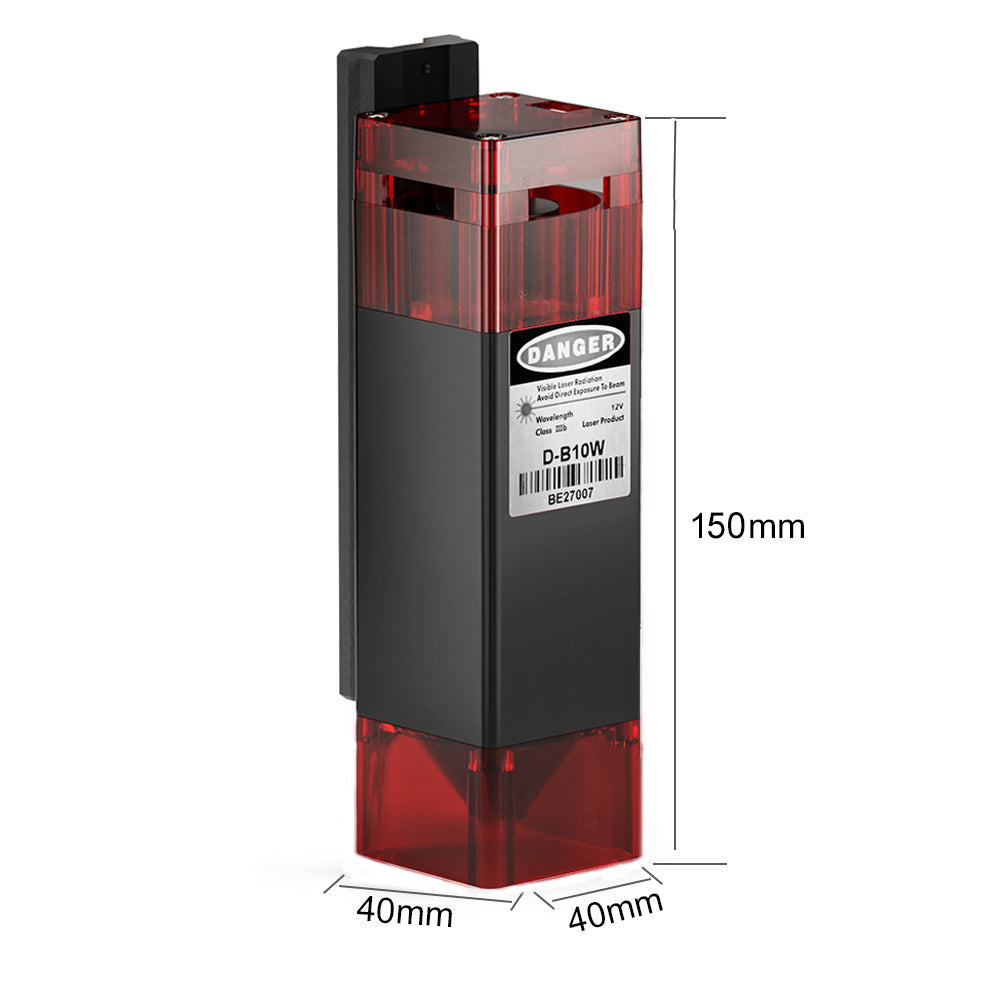

Machine Size:5.5w is 130*40*40mm and 10w is 150*40*40mm

Net Weight:0.25kg(0.44 pounds)

Please noticed that:

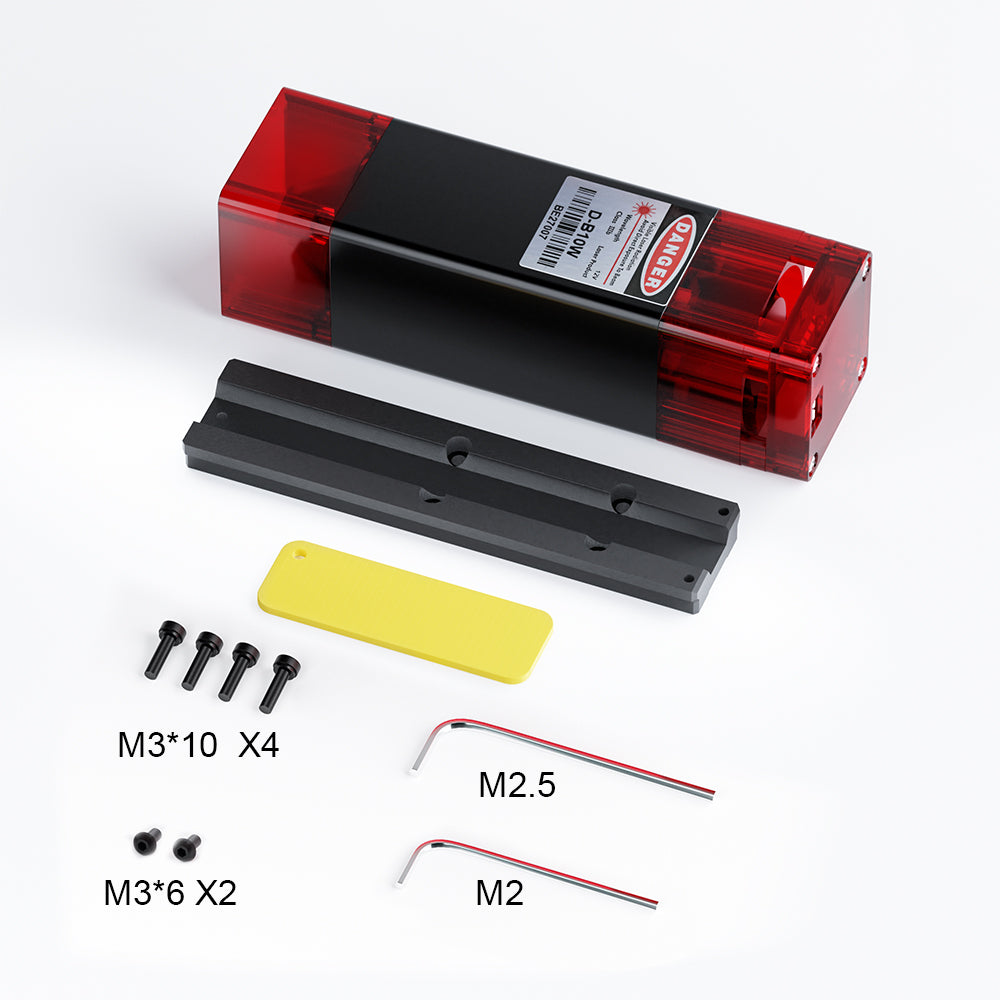

only the 10w laser head packaged with:

one piece of 12V 6A 10w laser head

one piece of power plug

one piece of power adapter

one piece of Smoke&Dust Suction Duct

one piece of location plate

and several screws and wrench

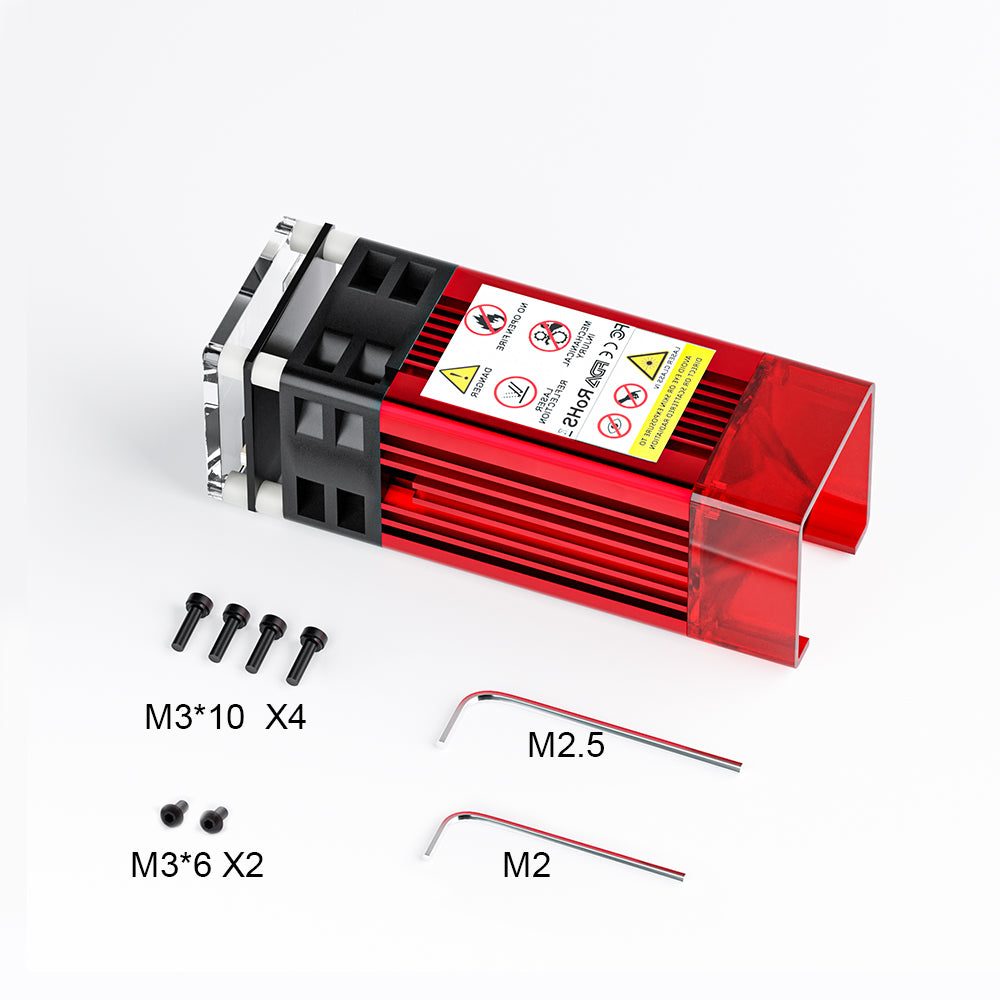

The 5.5W laser head is only: 1 piece of laser head,with screws and wrench
